Star Schema vs. Snowflake Schema: Choosing the Right Model for Power BI

Inkey Solutions, March 18, 2025306 Views

Building reports in Power BI requires the right data structure for optimal performance. The two main approaches are Star Schema and Snowflake Schema. Let’s break down their differences in a simple way.

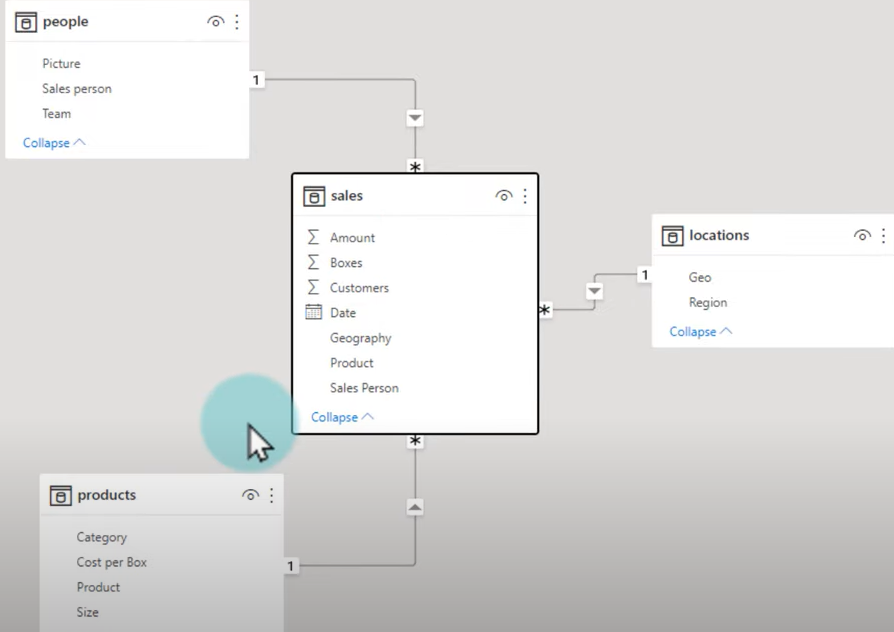

Understanding Star Schema

Think of Star Schema as the simpler, faster approach. It consists of a central fact table containing numeric values (sales, revenue, quantity, etc.) and multiple dimension tables that provide descriptive details (date, product, customer, etc.).

How It Works

• The fact table holds transaction data.
• Dimension tables connect directly to the fact table.
• The structure looks like a star when visualized.

Advantages of Star Schema

•  Fast Performance – Simple table joins mean quicker queries.
•  Easy to Understand – Relationships are straightforward, making it user-friendly.
•  Optimized for Power BI – Works seamlessly with Power BI’s data engine.

When It’s Not Ideal

• Data Redundancy – Some attributes (like product category) may be repeated.
• More Storage Required – Duplicated values can slightly increase file size.

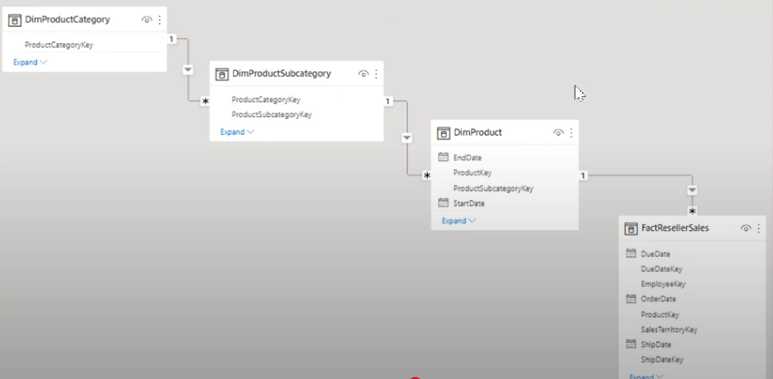

Understanding Snowflake Schema

Snowflake Schema takes things a step further by breaking down dimension tables into multiple related tables, reducing data redundancy but increasing complexity.

How It Works

• The fact table remains the same.
• Dimension tables are normalized (split into smaller tables).
• The structure resembles a snowflake.

Advantages of Snowflake Schema

• Saves Storage Space – Reduces duplicate data.
• More Organized – Well-structured for large datasets.
• Good for Complex Relationships – Useful when dimensions have multiple layers.

When It’s Not Ideal

• Slower Performance – More table joins can slow down queries.
• Complex to Work With – More relationships make it harder to manage.

Which One Should You Choose?

For most Power BI projects, Star Schema is the better choice because it’s faster and easier to work with. Power BI is optimized for this model, meaning better performance and simpler reporting.

However, if your dataset is massive and needs strict normalization, Snowflake Schema can help reduce storage costs—but at the cost of speed.

Quick Rule of Thumb

• If you want performance and simplicity, go with Star Schema.
• If you need more structured, space-efficient data, go with Snowflake Schema.

Final Thoughts

The right schema balances speed, storage, and complexity. Star Schema is usually the best choice for Power BI due to its efficiency in reporting and query performance.
